Description

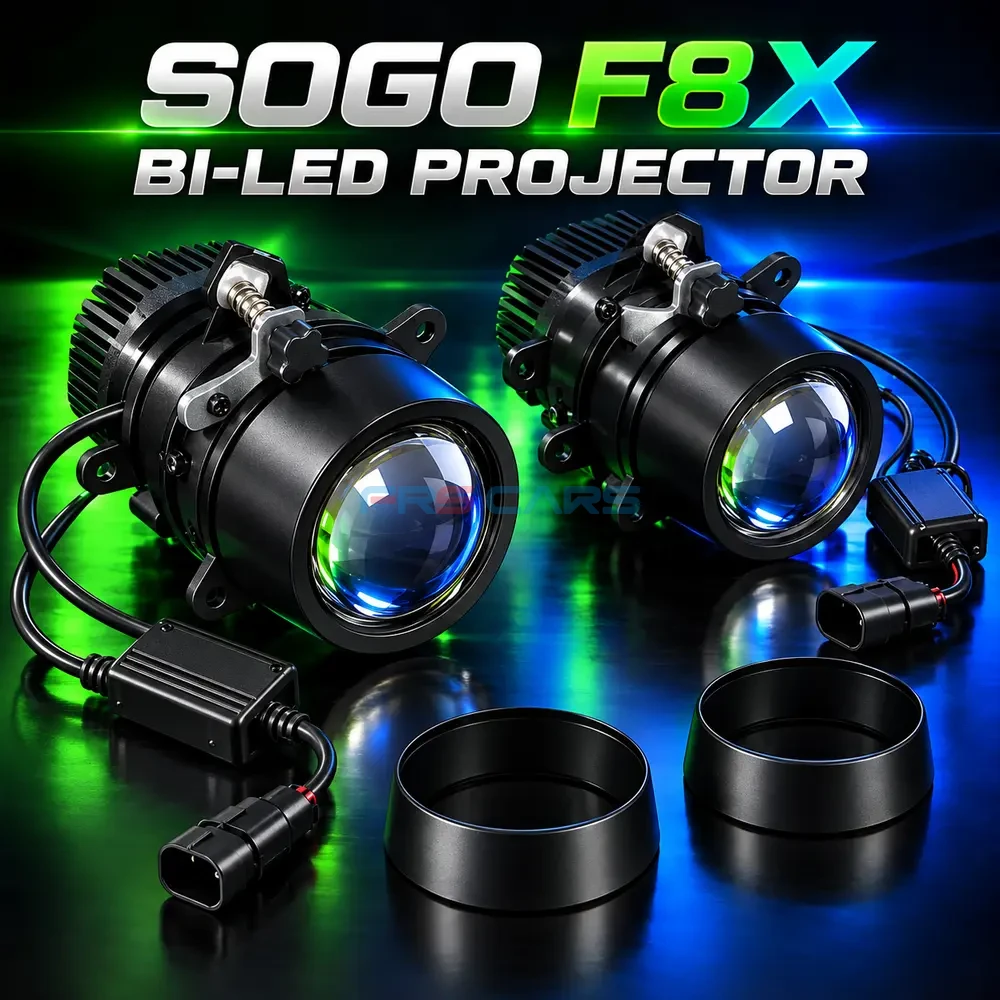

SOGO F8X Bi-LED Projector Headlight Kit

Advanced Bi-LED Projector Lighting

The SOGO F8X Bi-LED Projector Headlight Kit is designed for vehicle owners looking for a modern projector-style lighting upgrade. Its bi-LED projector design is intended for compatible headlight assemblies and can provide a more focused and distinctive appearance than a standard bulb setup.

The product images show two projector units with external driver modules and additional mounting components. The final installation method depends on the vehicle headlight housing, available space, mounting points, wiring and projector compatibility.

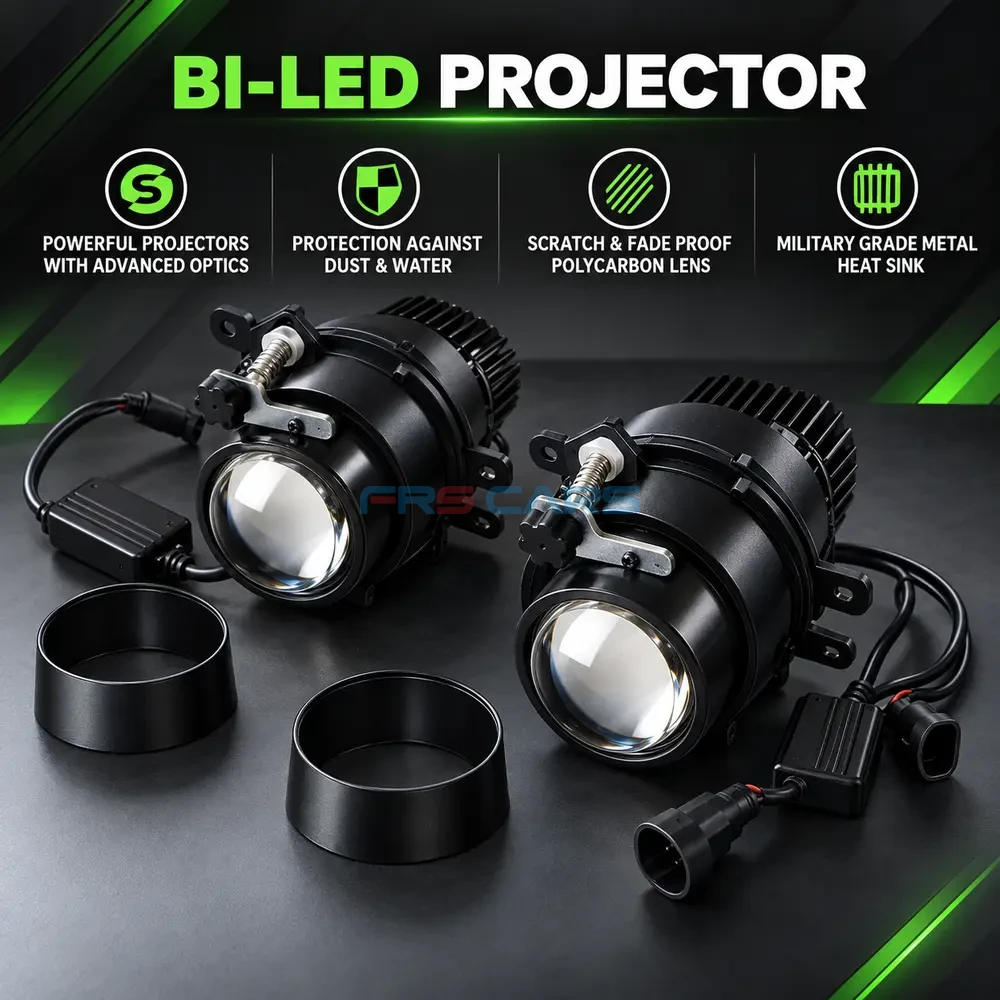

Powerful Projector Optics

The SOGO F8X packaging highlights powerful projector optics and advanced optical design. The promotional graphic also displays a 400% brighter claim. This is a packaging or promotional claim, and actual lighting performance may vary depending on the vehicle, projector alignment, lens condition, wiring, voltage and installation quality.

Correct projector alignment is essential for achieving a suitable beam pattern. A poorly aligned projector may create glare, reduce visibility or affect the performance of the vehicle’s headlight system.

Crystal Lens Appearance

The projector units feature a clear crystal-style lens appearance. This design gives the headlight assembly a modern and premium look when installed correctly.

The final appearance may vary depending on the headlight housing, shroud, lens cover and vehicle design. Ensure that the projector lens remains clean and is not obstructed by dust, moisture or incorrect installation components.

Metal Heat-Sink Construction

The packaging highlights a metal heat-sink design for heat management. The metal construction is intended to help manage heat around the projector and LED lighting components during operation.

Make sure there is sufficient space around the heat-sink section and driver modules. Do not cover the cooling area or install the projector in a restricted position that prevents proper heat dissipation.

External Driver Modules

The product images show external driver modules connected to the projector units. These drivers should be installed in a safe, dry and protected location inside the vehicle.

Keep the drivers and wiring away from:

• Excessive engine heat
• Water collection areas
• Sharp edges
• Belts and fans
• Steering components
• Moving parts
• Airbag systems

Secure the wiring properly and protect all connections from damage.

Protection Features

The product packaging highlights protection against dust and water, anti-corrosion construction and high-temperature resistance. These features are based on information shown on the packaging.

Correct installation is still essential. Modified headlight assemblies, open connectors and incorrectly sealed housings may not maintain the same protection level. Ensure that the headlight housing and wiring connections are properly sealed after installation.

Compatible Vehicle Installation

The SOGO F8X Bi-LED Projector Headlight Kit is not confirmed as a universal-fit product. Compatibility depends on:

• Vehicle make and model
• Vehicle year and trim
• Existing headlight housing
• Projector mounting space
• Wiring and connector type
• Vehicle voltage
• Available headlight depth
• Beam alignment requirements

This kit may require professional retrofitting or modification of the existing headlight assembly. Do not install it by force or modify the housing without suitable technical knowledge.

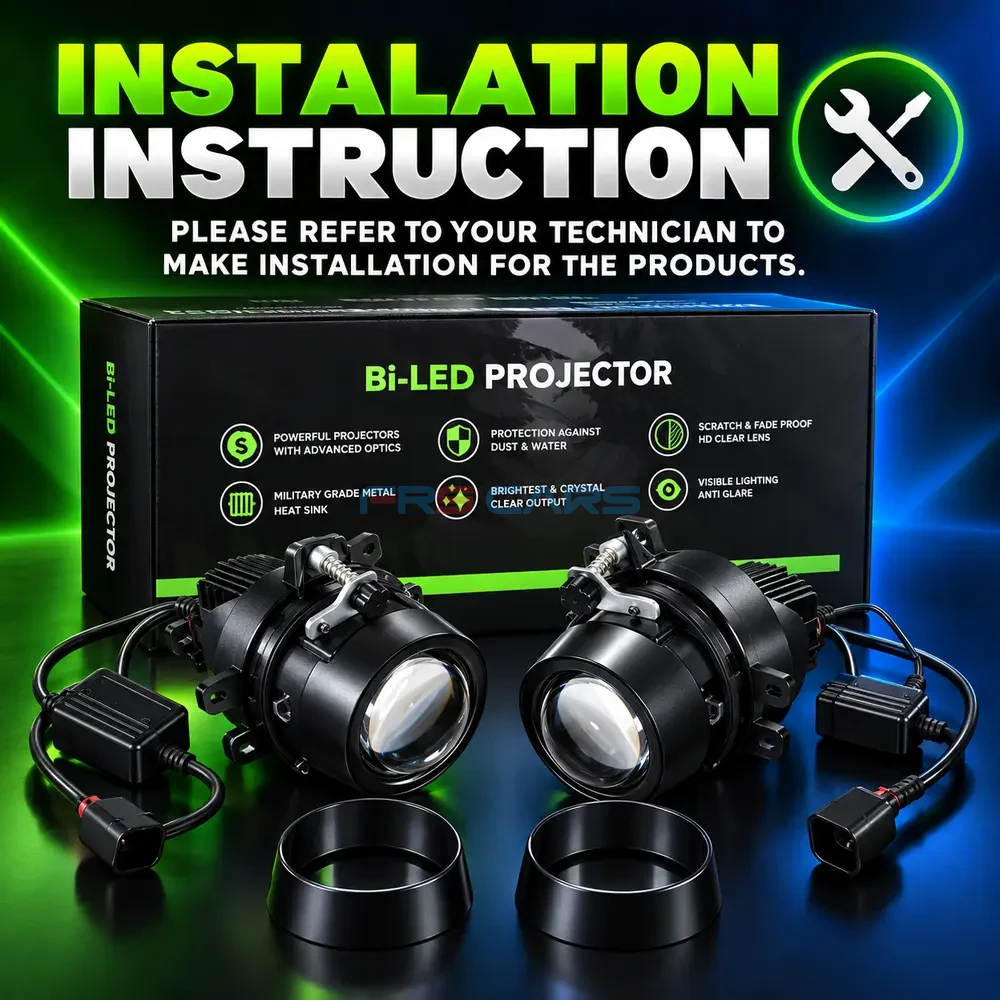

Installation Guide

1. Switch off the vehicle and disconnect the relevant power source.
2. Remove the headlight assembly according to the vehicle manual.
3. Check the projector mounting space and available depth.
4. Compare the projector connections with the vehicle wiring.
5. Position the projector correctly inside the headlight housing.
6. Secure the projector and mounting components firmly.
7. Install the external driver modules in a dry and protected location.
8. Route wiring away from hot and moving components.
9. Seal the headlight housing correctly after installation.
10. Test the projector lights before final assembly.
11. Check the low-beam and high-beam functions where applicable.
12. Adjust the beam pattern before driving.

Professional installation is strongly recommended because projector retrofitting may require headlight opening, mounting, wiring and beam adjustment.

Product Specifications

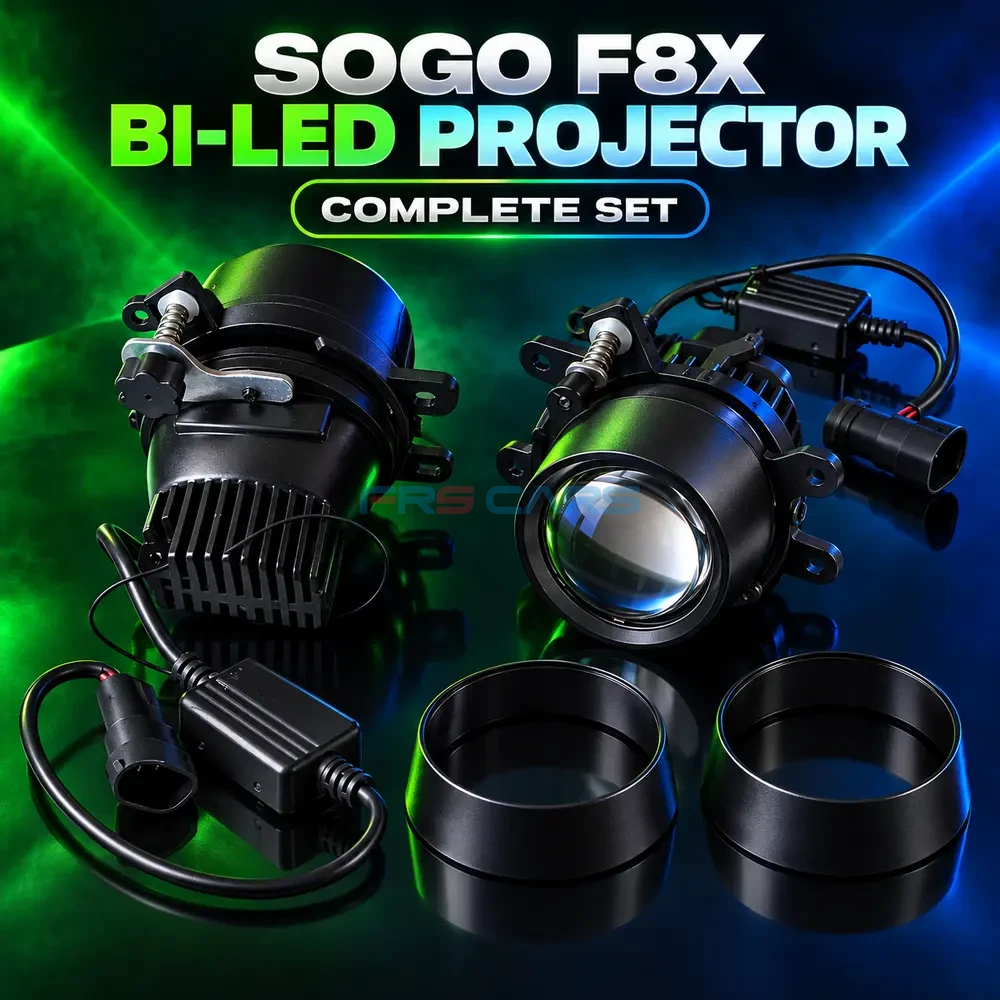

Package Includes

The product images show:

• 2 × SOGO F8X Bi-LED projector units
• External driver modules
• Projector mounting components or shrouds shown with the product

Please confirm the exact package contents, brackets, wiring, screws and accessories before dispatch.

Safety and Legal Notes

Aftermarket projector installation may affect the vehicle’s original beam pattern and road legality. Check local lighting regulations before using the product on public roads.

Do not look directly into the projector when switched on. Incorrect alignment can cause glare for oncoming traffic. Always test and adjust the headlights after installation.

This product does not guarantee a specific brightness level or road-legal result for every vehicle. Actual performance depends on installation quality, vehicle design and projector alignment.
