Description

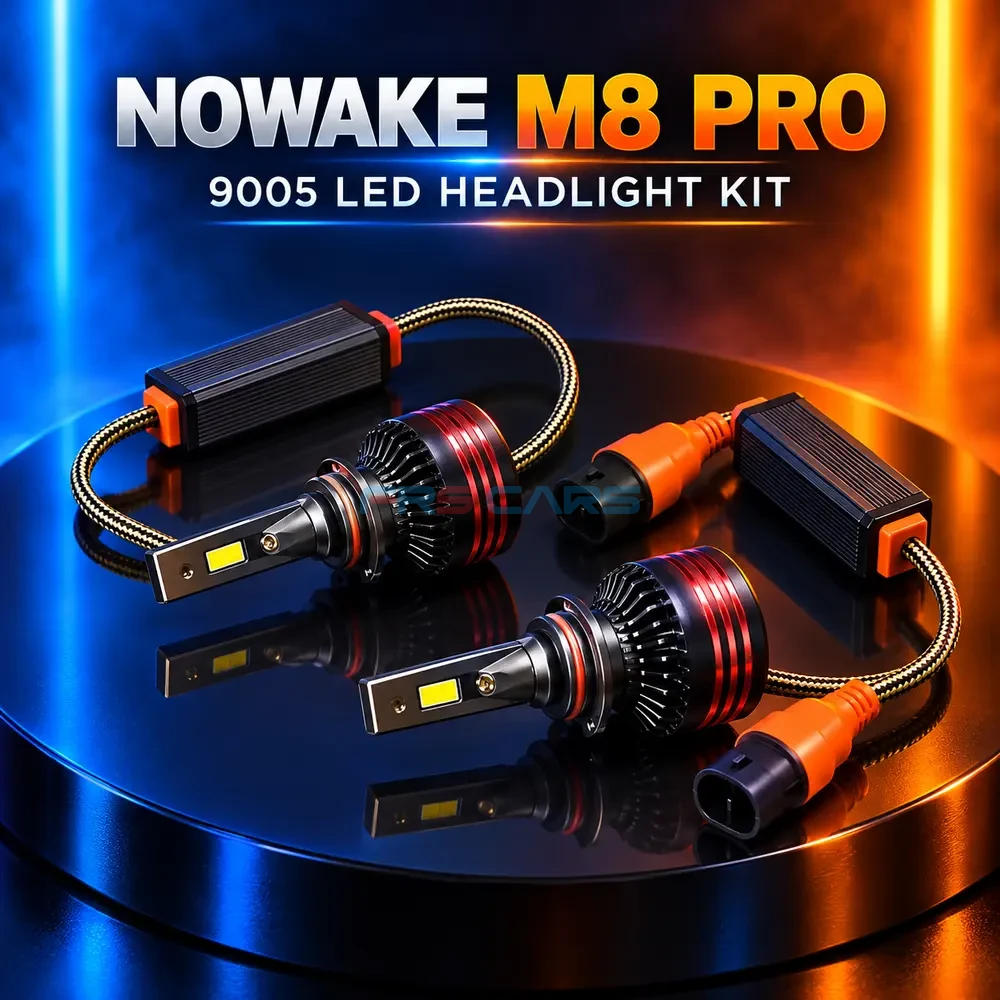

Bright NOWAKE M8 Pro LED Headlight 9005

Improve your vehicle’s lighting appearance with the NOWAKE M8 Pro LED Headlight 9005. Designed for vehicles that use a compatible 9005 headlight fitting, this LED headlight combines a modern M8 Pro design with a Cree light source, aluminium construction and a wide DC9-32V operating range listed on the product packaging.

The box displays performance claims of up to +350% more brightness and +200% beam length compared with a standard light. These figures are packaging claims, and actual performance may vary depending on the vehicle headlight housing, reflector design, lens condition, electrical system and installation alignment.

High-Brightness LED Headlight

The NOWAKE M8 Pro LED Headlight is designed as an aftermarket lighting upgrade for compatible vehicles. Its LED light source provides a bright and clear appearance, helping to modernise the look of the vehicle’s headlight system.

The packaging lists a 120W specification and displays brightness and beam performance comparisons. The actual light output and beam pattern depend on the vehicle’s original headlight housing and the way the bulb is positioned inside the assembly.

For the best result, the LED bulb should be installed in the correct orientation and the headlight beam should be checked after installation.

9005 Headlight Fitting

This product is marked for 9005 fitment on the packaging. Before ordering, compare the original bulb number in your vehicle with the 9005 fitting.

Compatibility can depend on:

• Vehicle make and model
• Vehicle year and trim
• Original bulb type
• Socket design
• Available installation space
• Vehicle wiring system
• Headlight housing design

A 9005 bulb should not be forced into a different socket. If the original bulb number is not 9005, confirm compatibility before purchase.

Cree LED Light Source

The product specification panel lists a Cree light source. This LED technology is designed to provide a bright and focused lighting effect for compatible automotive applications.

Actual brightness, beam clarity and road coverage can vary according to the vehicle’s reflector, projector, lens, wiring and installation position.

Durable Aviation Aluminium Construction

The NOWAKE M8 Pro packaging lists aviation aluminium 6063 as the construction material. Aluminium construction is designed to provide a lightweight and durable housing for the LED headlight.

The product specification also displays a claimed service life of more than 30,000 hours. This is a packaging-listed claim, and actual service life may vary depending on operating temperature, voltage, usage, installation and vehicle conditions.

IP65 Protection

The product specification lists an IP65 protection rating. This indicates protection against dust and water jets under specified testing conditions.

IP65 protection does not mean the product should be submerged in water. Make sure the headlight cover, dust cap, socket and wiring are properly sealed after installation to help prevent moisture from entering the headlight housing.

Light Colour Information

The packaging displays several light-colour options, including:

• 3000K
• 6500K
• 8000K

The specification panel also lists 6000K. Because the packaging shows different colour information, confirm the exact light colour supplied with the product before dispatch.

Colour temperature affects the appearance of the light:

• 3000K generally produces a warmer yellow appearance.
• 6000K–6500K generally produces a white appearance.
• 8000K generally produces a cooler bluish-white appearance.

The actual colour may vary depending on the product version, camera exposure, headlight lens and surrounding conditions.

DC9-32V Compatibility

The product specification lists a DC9-32V operating range. Confirm that the vehicle’s electrical system is compatible before installation.

Do not connect the headlight to an unsuitable power source. Incorrect wiring or voltage may damage the bulb, vehicle wiring or other electrical components.

Some vehicles may require additional CAN bus adapters, resistors or error-cancelling components. These accessories are not included unless specifically stated in the package contents.

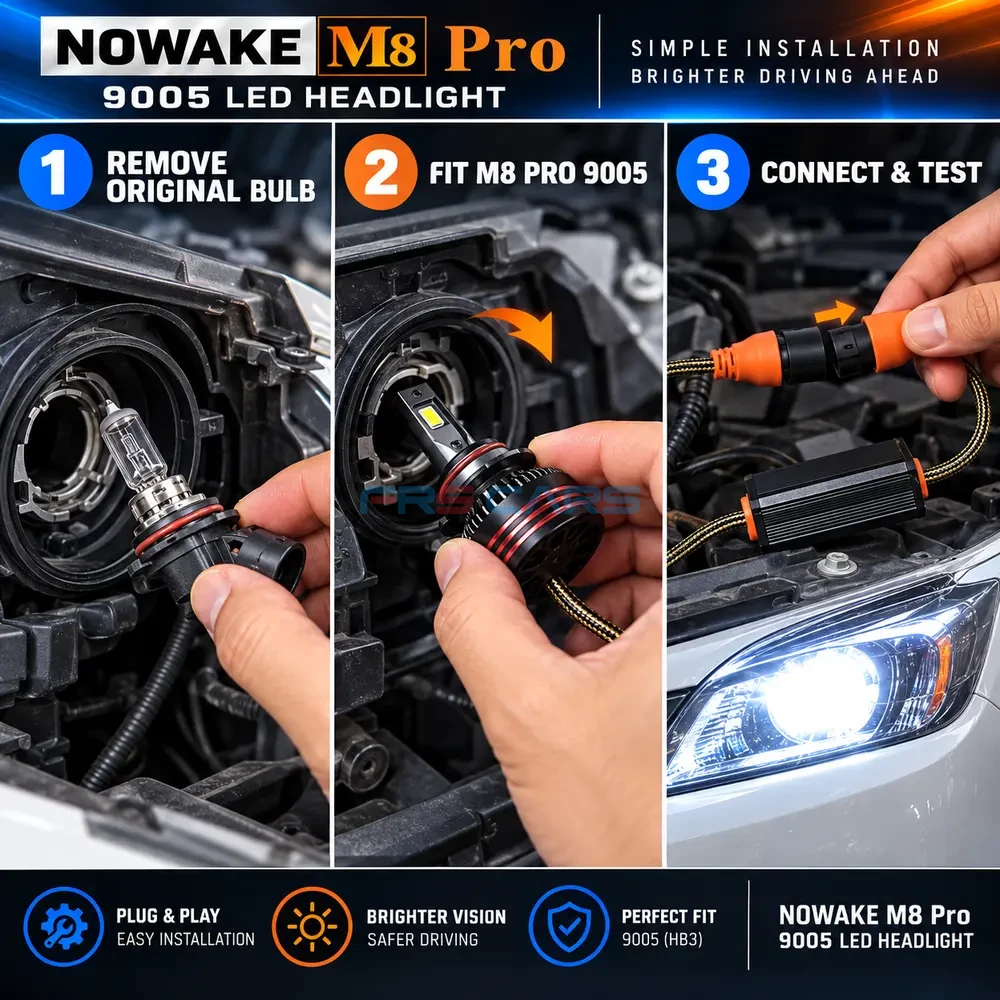

Installation Instructions

1. Switch off the vehicle and allow the original headlight to cool.
2. Confirm that the original bulb fitting is 9005.
3. Remove the original bulb according to the vehicle manual.
4. Compare the connector and base of the NOWAKE M8 Pro LED Headlight.
5. Install the LED bulb without forcing it into the socket.
6. Make sure the bulb is correctly aligned.
7. Reconnect the headlight wiring.
8. Refit the dust cover and check the seal.
9. Test the headlight before driving.
10. Adjust the beam if required.

Professional installation is recommended if you are unsure about the vehicle wiring or headlight alignment.

Main Features

• NOWAKE M8 Pro LED Headlight
• 9005 fitting
• Box-listed 120W output
• Cree LED light source
• Box-listed 60000LM specification
• DC9-32V operating range listed on packaging
• IP65 protection listed on packaging
• Aviation aluminium 6063 construction
• Claimed service life above 30,000 hours
• Box-listed +350% brightness claim
• Box-listed +200% beam-length claim
• Compact aftermarket headlight design
• CE and RoHS logos displayed on packaging
• Made in China, as shown on packaging

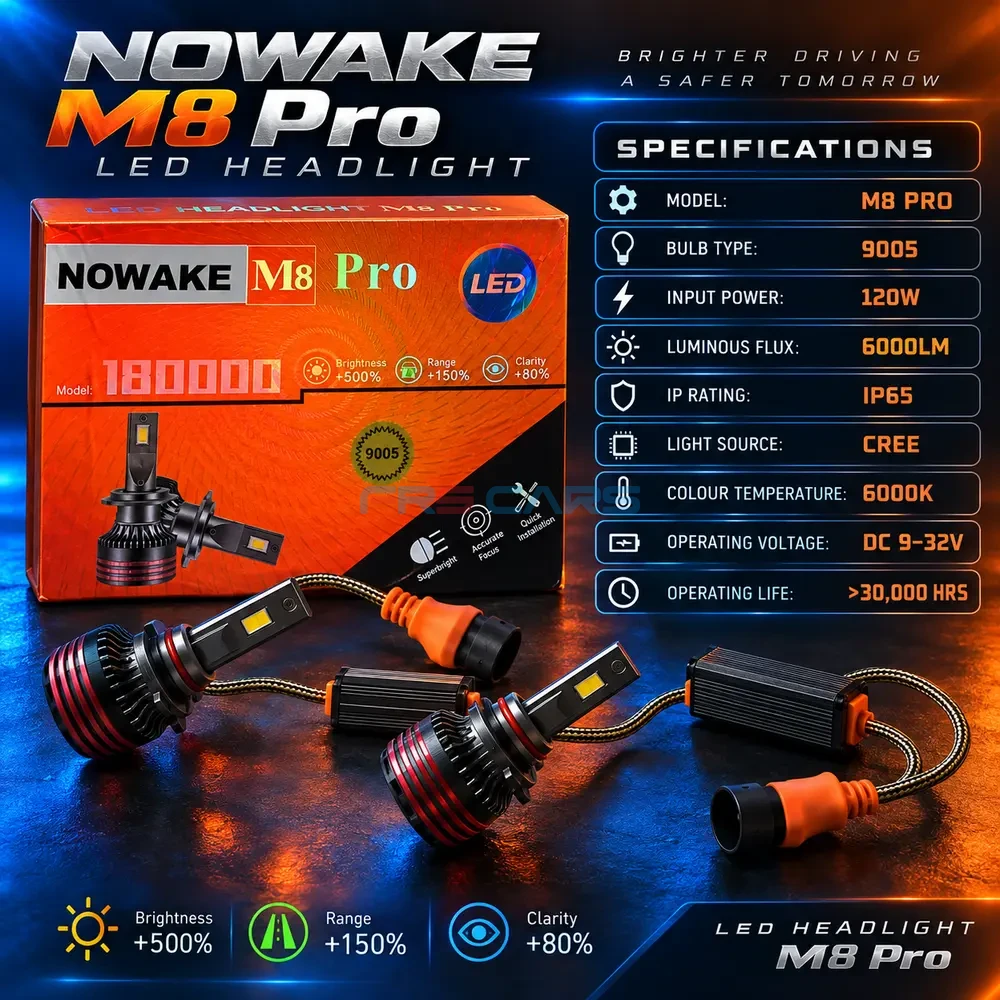

Technical Specifications

Brand: NOWAKE
Model: M8 Pro
Product Type: LED headlight bulb
Fitment: 9005
Listed Power: 120W
Listed Light Output: 60000LM
Light Source: Cree LED
Listed Colour: 6000K
Displayed Colour Options: 3000K, 6500K and 8000K
Operating Voltage: DC9-32V
Protection Rating: IP65
Material: Aviation aluminium 6063
Claimed Lifespan: More than 30,000 hours
Brightness Claim: Up to +350%, as shown on packaging
Beam Length Claim: Up to +200%, as shown on packaging
Certification Marks: CE and RoHS logos displayed on packaging
Manufacturing Country: Made in China

Package Includes

• 1 × NOWAKE M8 Pro LED Headlight 9005

If the product is supplied as a pair, update the package quantity only after confirming the actual stock packaging. The provided images show the product box, but they do not confirm whether the sale includes one bulb or a pair.

Compatibility and Safety Notes

This product is designed for compatible vehicles using the 9005 fitting. It is not automatically compatible with every car.

Before purchase, confirm:

• Original bulb number
• 9005 socket compatibility
• Vehicle voltage
• Headlight housing space
• Connector compatibility
• Dust-cover clearance
• Local lighting regulations

Incorrect beam alignment can create glare for other drivers. After installation, check that the beam pattern is properly directed and does not affect road safety.

Do not touch the LED or optical area unnecessarily during installation. Keep the product away from excessive heat, water entry and damaged wiring.

Important Product Disclaimer

The brightness, beam length, light output, lifespan and other performance figures mentioned above are specifications or claims displayed on the product packaging.

Actual performance may vary depending on the vehicle, headlight housing, reflector, lens, wiring, voltage, installation position and environmental conditions.

The CE and RoHS logos shown on the packaging are included for product identification. Always confirm the exact specifications and legal road-use requirements before installation.
